釹鐵硼強力磁鐵燒結物理特性NdFeB Sintered Magnet Feature

NdFeB強力磁鐵燒結磁石其專利權,目前已由日本住友金屬公司轉售給日立金屬公司,屬于異方性磁石,所以較粘結品磁力較強,其磁能積由N-35~N-55(一般80℃) (BH)max在56MGOe,但也因高溫退磁特性而產生各種不同耐溫牌號(M100℃、H120℃、SH150℃----等等)

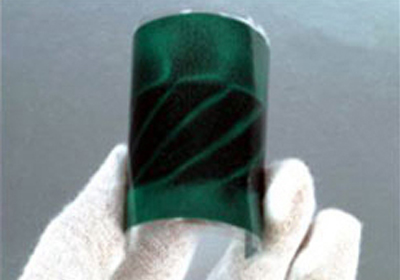

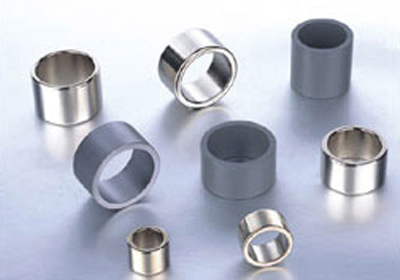

輻射環

輻射環

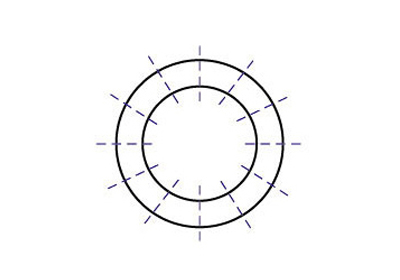

磁場配向,放射狀異方性

輻射取向磁環,以其優良的性能,合理的機構在永磁材料中普遍採用,尤其鐵氧體中使用廣泛。但對於國內燒結釹鐵硼行業來說,充磁方向普遍停留在平行取向水平,輻射取向磁環僅在實驗室試製,還未形成批量供貨能力。
我公司在磁鐵成型工藝上取得光輝業績的同時,公司繼續加強對強力磁鐵產品發展的投入,2003年,本公司科技人員在獨立研製的無等靜壓高度一次成型新工藝基礎上,攻克了輻射取向難題,使國內燒結釹鐵硼強力磁鐵生產工藝取得了突破性提高,並於9月28日申請了發明專利(專利號為00125615.7)。目前,此項技術已達到國際先進水準,此項技術的應用在很大程度上推動了釹鐵硼強力磁鐵應用領域的擴展。

牌號 Item/ 性能 Proprtles Residual induction
剩磁感應強度
Br mT (kG)
Coercive Force 矯頑力 bHc KA/m (KOe) Intrinsic Coercive Force 內稟矯頑力 iHc KA/m (KOe) Max Energy Product 最大磁能積 (BH)max KJ/m3(MGOe) Max. Appl. Temp.
最高工作溫度 TwC
N35 1170-1220
(11.7-12.2)
≧ 860
( ≧10.8 )
≧ 955
( ≧12 )
263-287 (33-36) 80
N38 1220-1250
(12.2-12.5)
≧ 860
( ≧10.8 )
≧ 955
( ≧12 )
287-310 (36-39) 80
N40 1250-1280
(12.5-12.8)
≧ 860
( ≧10.8 )
≧ 955
( ≧12 )
302-326 (38-41) 80
N42 1280-1320
(12.8-13.2)
≧ 860
( ≧10.8 )
≧ 955
( ≧12 )
318-342 (40-43) 80
N45 1320-1370
(13.2-13.7)
≧ 860
( ≧10.8 )
≧ 955
( ≧12 )
342-366 (43-46) 80
N48 1370-1430
(13.7-14.3)
≧ 836
( ≧10.5 )
≧ 876
( ≧11 )
358-390 (45-49) 80
N50 1390-1440
(13.9-14.4)
≧ 836
( ≧10.5 )
≧ 876
( ≧11 )
374-406 (47-51) 80
N52 1420-1460
(14.2-14.6)
≧ 836
( ≧10.5 )
≧ 876
( ≧11 )
390-422 (49-53) 80
N54 1450-1490
(14.5-14.9)
≧ 836
( ≧10.5 )
≧ 876
( ≧11 )
406-437 (51-55) 80
N55 1460-1520
(14.6-15.2)
≧ 836
( ≧10.5 )
≧ 876
( ≧11 )
414-430 (53-56) 80
N35M 1170-1220
(11.7-12.2)
≧ 868
( ≧10.9 )
≧ 1114
( ≧14 )
263-287 (33-36) 100
N38M 1220-1250
(12.2-12.5)
≧ 899
( ≧11.3 )
≧ 1114
( ≧14 )
287-310 (36-39) 100
N40M 1250-1280
(12.5-12.8)
≧ 923
( ≧11.6 )
≧ 1114
( ≧14 )
302-326 (38-41) 100
N42M 1280-1320
(12.8-13.2)
≧ 955
( ≧12.0 )
≧ 1114
( ≧14 )
318-342 (40-43) 100
N45M 1320-1370
(13.2-13.7)
≧ 995
( ≧12.5 )
≧ 1114
( ≧14 )
342-366 (43-46) 100
N48M 1370-1420
(13.7-14.2)
≧ 995
( ≧12.5 )
≧ 1114
( ≧14 )
358-390 (45-49) 100
N50M 1390-1440
(13.9-14.4)
≧ 995
( ≧12.5 )
≧ 1035
( ≧13 )
374-406 (47-51) 100
N52M 1420-1460
(14.2-14.6)
≧ 995
( ≧12.5 )
≧ 1035
( ≧13 )
382-422 (48-53) 100
N54M 1440-1490
(14.4-14.9)
≧ 995
( ≧12.5 )
≧ 1035
( ≧13 )
398-438 (50-55) 100
N33H 1130-1170
(11.3-11.7)
≧ 836
( ≧10.5 )
≧ 1353
( ≧17 )
247-271 (31-34) 120
N35H 1170-1220
(11.7-12.2)
≧ 868
( ≧10.9 )
≧ 1353
( ≧17 )
263-287 (33-36) 120
N38H 1220-1250
(12.2-12.5)
≧ 899
( ≧11.3 )
≧ 1353
( ≧17 )
287-310 (36-39) 120
N40H 1250-1280
(12.5-12.8)
≧ 923
( ≧11.6 )
≧ 1353
( ≧17 )
302-326 (38-41) 120
N42H 1280-1320
(12.8-13.2)
≧ 955
( ≧12.0 )
≧ 1353
( ≧17 )
318-342 (40-43) 120
N45H 1320-1370
(13.2-13.7)
≧ 995
( ≧12.5 )
≧ 1353
( ≧17 )
342-366 (43-46) 120
N48H 1360-1420
(13.6-14.2)
≧ 1011
( ≧12.7 )
≧ 1273
( ≧16 )
358-390 (45-49) 120
N50H 1390-1440
(13.9-14.4)
≧ 1026
( ≧12.9 )
≧ 1273
( ≧16 )
374-406 (47-51) 120
N52H 1420-1460
(14.2-14.6)
≧ 1035
( ≧13 )
≧ 1273
( ≧16 )
382-422 (48-53) 120
N30SH 1080-1130
(10.8-11.3)
≧ 804
( ≧10.1 )
≧ 1592
( ≧20 )
223-247 (28-31) 150
N33SH 1130-1170
(11.3-11.7)
≧ 844
( ≧10.6 )
≧ 1592
( ≧20 )
247-271 (31-34) 150
N35SH 1170-1220
(11.7-12.2)
≧ 876
( ≧11 )
≧ 1592
( ≧20 )
263-287 (33-36) 150
N38SH 1220-1250
(12.2-12.5)
≧ 907
( ≧11.4 )
≧ 1592
( ≧20 )
287-310 (36-39) 150
N40SH 1250-1280
(12.5-12.8)
≧ 939
( ≧11.8 )
≧ 1592
( ≧20 )
302-326 (38-41) 150
N42SH 1280-1320
(12.8-13.2)
≧ 955
( ≧12 )
≧ 1592
( ≧20 )
318-342 (40-43) 150
N45SH 1320-1370
(13.2-13.7)
≧ 987
( ≧12.4 )
≧ 1512
( ≧19 )
342-366 (43-46) 150
N48SH 1360-1400
(13.6-14.0)
≧ 1011
( ≧12.7 )
≧ 1512
( ≧19 )
358-390 (45-49) 150
N50SH 1390-1420
(13.9-14.2)
≧ 1035
( ≧13)
≧ 1512
( ≧19)
374-406 (47-51) 150
N30UH 1080-1130
(10.8-11.3)
≧ 812
( ≧10.2 )
≧ 1990
( ≧25 )
223-247 (28-31) 180
N33UH 1130-1170
(11.3-11.7)
≧ 852
( ≧10.7 )
≧ 1990
( ≧25 )
247-271 (31-34) 180
N35UH 1170-1220
(11.7-12.2)
≧ 860
( ≧10.8 )
≧ 1990
( ≧25 )
263-287 (33-36) 180
N38UH 1220-1250
(12.2-12.5)
≧ 907
( ≧11.4 )
≧ 1990
( ≧25 )
287-310 (36-39) 180
N40UH 1250-1280
(12.5-12.8)
≧ 923
( ≧11.6 )
≧ 1990
( ≧25 )
326-302 (38-41) 180
N42UH 1280-1320
(12.8-13.2)
≧ 971
( ≧12.2 )
≧ 1990
( ≧25 )
318-342 (40-43) 180
N45UH 1320-1360
(13.2-13.6)
≧ 987
( ≧12.4 )
≧ 1911
( ≧24 )
342-366 (43-46) 180
N48UH 1360-1400
(13.6-14.0)
≧ 1011
( ≧12.7 )
≧ 1911
( ≧24 )
358-390 (45-49) 180
N30EH 1080-1130
(10.8-11.3)
≧ 820
( ≧10.3 )
≧ 2388
( ≧30 )
223-247 (28-31) 200
N33EH 1130-1170
(11.3-11.7)
≧ 860
( ≧10.8 )
≧ 2388
( ≧30 )
247-271 (31-34) 200
N35EH 1170-1220
(11.7-12.2)
≧ 884
( ≧11.1 )
≧ 2388
( ≧30 )
263-287 (33-36) 200
N38EH 1220-1250
(12.2-12.5)
≧ 915
( ≧11.5 )
≧ 2388
( ≧30 )
287-310 (36-39) 200
N40EH 1250-1280
(12.5-12.8)
≧ 947
( ≧11.9 )
≧ 2388
( ≧30 )
302-326 (38-41) 200
N42EH 1280-1320
(12.8-13.2)
≧ 970
( ≧12.2 )
≧ 2388
( ≧30 )
318-342 (40-43) 200
N45EH 1320-1360
(13.2-13.6)
≧ 979
( ≧12.3 )
≧ 2308
( ≧29 )
342-366 (43-46) 200
N28AH 1020-1090
(10.2-10.9)
≧ 772
( ≧9.7 )
≧ 2786
( ≧35 )
199-231 (25-29) 220
N30AH 1070-1130
(10.7-11.3)
≧ 812
( ≧10.2 )
≧ 2786
( ≧35 )
215-247 (27-31) 220
N33AH 1130-1170
(11.2-11.7)
≧ 844
( ≧10.6 )
≧ 2786
( ≧35 )
239-271 (31-34) 220
N35AH 1170-1220
(11.7-12.2)
≧ 883
( ≧11.1 )
≧ 2786
( ≧35 )
263-287 (33-36) 220
N38AH 1220-1250
(12.2-12.5)
≧ 915
( ≧11.5 )
≧ 2786
( ≧35 )
287-310 (36-39) 220
N40AH 1250-1280
(12.5-12.8)
≧ 970
( ≧12.2 )
≧ 2706
( ≧34)
302-326 (38-41) 220
